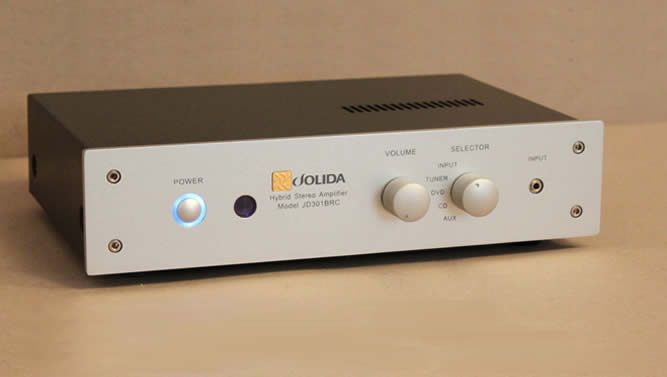

JD1301BRC /JD301BRC integrated amp 30 watt amp

Posted by fgxadmin

Call for price and availability before ordering



Please indicate if you want a silver or black face plate in the comments section of the order if you place an order. If nothing is indicated a silver face unit will be shipped.

Sales Policy : All sales are final no returns accepted.If any Jolida shipment is refused and or returned for any reason including a possible defect and no defect is found a 25% restocking fee will be imposed additionally  customer will be responsible for all shipping charges to and from the shipping point.By placing an order you are accepting these terms.Free shipping applies to Domestic US destinations only.

Who says good things don’t come in small packages. Combines the best of two worlds, a tube pre-amp with a solid state power amplifier with remote control. A smooth silky sound with pace, bass and power at an affordable price. Available in Black or Silver finish.

Rated Output Power:        30 W per channel at 8 ohms, 22Hz to 20KHz

                                                55 W per channel at 4 ohms, 22Hz to 20KHz

Frequency Response:      (at 1 watt into 8 ohms) 5Hz to 100KHz   + 1dB

Bandwidth:                          22Hz to 20kHz + 3dB; 0dB 30 W 1KHz

Distortion THD:                  Less than 0.1% at 30 W output, 25Hz to 18KHz

Input Impedance:               47Kohms

Input Sensitivity:                400mV at 1KHz and 8 ohms for 30 watt output

Noise and Hum:                  90dB below rated output

Tube Complement:            2 pcs. 12AX7 for the preamplifier

Power Requirements:       110V-120 VAC 60Hz 180 watts-standby, 250 watts maximum (220 VAC 50Hz option)

Dimensions:                        7 inches wide by 6 inches deep by 4 inches high

Weight:                                  8 pounds (3.65 Kg) net, approximately 11 pounds (5 Kg) packaged

Warranty:                              18 months limited parts and labor. Six months or 1000 hours whichever comes first on Jolida Tubes.

Fuse: 110 – 120 VAC, 1 Amp Fast Blo; 200 – 240 VAC, 0.5 Amp Fast Blo

Construction Details and Features:

o Fully Integrated Stereo Amplifier: Input 400mV driving 30 watts

o Multiple Inputs:  Front mounted selector switch - Input, Tuner, DVD, CD, and  Aux. (for TV, VCR or Computer|).

o State of the Art Components: ALPS audio potentiometer, gold plated RCA input jacks, and front panel  minjack input.

o Remote Control: Volume and mute

o State of the Art Components: ALPS audio potentiometer, gold plated RCA input jacks.

o Low Feedback Design: Only 5 dB

o Comes in Black or Silver


Price: $0.00
