JD302CRC Black Face ,now discontinued and replaced by the Fusion 3502

Posted by tntadmin
SKU: JD302CRC Black


Now discontinued and has been replaced by the Fusion 3502

 Sales Policy : All sales are final no returns accepted.If any Jolida shipment is refused and or returned for any reason including a possible defect and no defect is found a 25% restocking fee will be imposed additionally  customer will be responsible for all shipping charges to and from the shipping point.By placing an order you are accepting these terms.


Price includes freight (Domestic USA locations only not good for Hi or Alaska or the rest of the world ) Thats correct we pay shipping Do not try to use the shipping calculator it is disabled for this product because we pay shipping.do not select any shipping method when ordering . All Jolida units are shipped via Fedex ground with signature required upon receipt

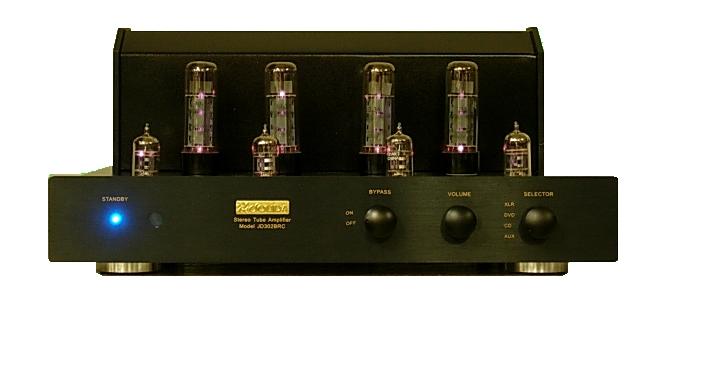

NOTE: This model replaces the JD302BRC and JD302B . It is the same as the JD302BRC except it now has an input on the face plate for a MP3 player/or ipod. Picture shows JD302BRC New pictures are coming soon!


Construction Details and Features:

  • Fully Integrated Stereo Amplifier: Input 500mV driving 50 watts, maximum 75 watts output.
  • Remote Control: Volume( +/- ), Standby, & Mute
  • Multiple Inputs: Front mounted selector switch-CD, DVD, Tuner and Aux (for TV, VCR, or Computer).
  • Custom Wound Audio Transformers with a core of German grain oriented silicon steel. 15th generation proprietary design. Secondary can be configured for a 4 ohm or 8 ohm load.
  • Easy Biasing with top panel bias testing terminal with bias adjustment controls.
  • State of the Art Components: Blue ALPS audio potentiometer, gold plated RCA input jacks.
  • Input on face plate for MP3/ or Ipod player

Technical Specifications:

Maximum Power Output:
75 W per channel at 8 ohms, 1KHz
Rated Output Power:
50 W per channel at 8 ohms, 25Hz to 70KHz
Frequency Response:
(at 1 watt into 8 ohms) 8Hz to 130KHz + 1dB
13Hz to 80KHz + 3dB; 0dB 50 W 1KHz
Distortion THD:
Less than 1% at 50 W output, 28Hz to 15kHz
Input Impedance:
Input Sensitivity:
500mV at 1KHz and 8 ohms for 50 watt output
Output Impedance:
4 ohms and 8 ohms
Negative Feedback:
Less than 5 dB
Noise and Hum:
85dB below rated output
Tube Complement:
2 matched pairs (4) of 6CA7/EL34 power output; 2 pcs. 12AX7A/ECC83 pre-amplifier; 2 pcs. 12AT7/ECC81 power drivers.
Power Requirements:
110V-120 VAC 60Hz 180 watts-standby, 450 watts maximum (220 VAC 50Hz option).
17 inches (43cm) wide by 15 inches (38cm) deep by 7.5 inches (19 cm) high.
39 pounds (18 Kg) net, approximately 46 pounds (21 Kg) packaged.
Two year limited parts and labor. One year or 1000 hours whichever comes first on Jolida Tubes.
110 - 120 VAC, 6.3 Fast Amp Blo; 200 - 240 VAC, 3 Amp Fast Blo
