FX10 Integrated amp,Price includes Frt

Posted by Anonymous
$575.00
SKU: FX10

 Note: New York State Residents must pay sales tax

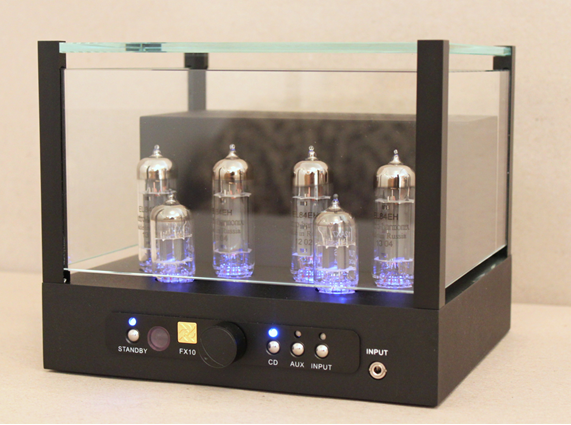

A Compact full Integrated Tube Amplifier
Smooth, rich and holographic sound from a 7 inch cube with a removable safety glass cover. A small but feature laden integrated vacuum tube amplifier, the unit has automatic biasing, can easily push 89 dB speakers, remote control, inputs of two RCA sets and one mini-jack with and 4 and 8 ohm speaker posts. Yes, it does come with the blue tube lights. Comes in black and silver colors.


 Sales Policy : All sales are final no returns accepted.If any Jolida shipment is refused and or returned for any reason including a possible defect and no defect is found a 25% restocking fee will be imposed addditionaly  customer will be responsible for all shipping charges to and from the shipping point.By placing an order you are accepting these terms.only.Free shipping applies to Domestic U.S. locations only



Construction Details and Features:

  • Fully Integrated Stereo Amplifier: Input 670 mV driving 10 watts.
  • Multiple Inputs: CD and Aux (for Tuner, TV, VCR, Tape Recorder, Computer and etc). 1/8 inch input for MP3 Players or IPOD
  • Remote Control: On/off, volume, selector, mute.
  • Full Glass Top with Heat resistant Safety Glass
  • Self Biasing Circuit
  • Compact Size: 8 in. W X 7 in. D X 7 in. H

Technical Specifications:

Maximum power Output:
12 W per channel at 8 ohms, 1KHz

Rated Output Power:
10 W per channel at 8 ohms, 26Hz to 50KHz

Frequency Response:
(at 1 watt into 8 ohms) 17Hz to 37KHz + 1dB; 0dB at 1KHz

Bandwidth:
14Hz to 50KHz + 3dB; 0dB = 10 W 1KHz, 8 ohms

Distortion THD + N:
Less than 1% at 10 W output, 39Hz to 10KHz, 8 ohms

Circuit Type:
Ultra Linear, Class AB1

Input Impedance:
= or < 100Kohms

Input Sensitivity:
Max. 670 mV for 10 watt output at 1KHz

Output Impedance:
4 ohms and 8 ohms

Negative Feedback:
Less than 3 dB

Signal & Noise Ratio S/N:
81dB below rated output from 10Hz to 200Khz

Tube Complement:
2 matched pairs (4) of EL84 power output; 2 pcs. 12AX7 preamplifier.

Power Requirements:
110V-120 VAC 60Hz or 220-240 VAC 50Hz

Bias Settings:
Self biasing

Dimensions:
8 inches wide by 7 inches deep by 7 inches high.

Weight:
12 pounds net, approximately 16 pounds packaged.

Fuse:
For 110/120 VAC 2 amp fast blo, for 220/240 VAC 1 amp fast blo, Size 5mm X 20mm

Warranty:
Nine months limited parts and labor.

Copyright © 2010 Jolida Inc. Info & images for reproductio

Specifications:

Maximum power Output:     12 W per channel at 8 ohms,  1KHz
Rated Output Power:           10 W per channel at 8 ohms, 26Hz to 50KHz
Frequency Response:          (at 1 watt into 8 ohms) 17Hz to 37KHz + 1dB; 0dB at 1KHz
Bandwidth:                            14Hz to 50KHz + 3dB; 0dB = 10 W 1KHz, 8 ohms
Distortion THD + N:             Less than 1% at 10 W output, 39Hz to 10KHz, 8 ohms
Circuit Type:                         Ultra Linear, Class AB1
Input Impedance:                  = or < 100Kohms
Input Sensitivity:                   Max. 670 mV for 10 watt output at 1KHz
Output Impedance:               4 ohms and 8 ohms
Negative Feedback:              Less than 3 dB
Signal & Noise Ratio S/N:    81dB below rated output from 10Hz to 200Khz
Tube Complement:               2 matched pairs (4) of  EL84 power output; 2 pcs. 12AX7 preamplifier.
Power Requirements:          110V-120 VAC 60Hz or 220-240 VAC 50Hz
Bias Settings:                        Self biasing
Dimensions:                          8 inches wide by 7 inches deep by 7 inches high.
Weight:                                   12 pounds net, approximately 16 pounds packaged.
Fuse:                                      For 110/120 VAC: 2 amp fast blo, for 220/240 VAC: 1 amp fast blo,
                                                Size: 5mm X 20mm
Warranty:                               Nine months limited parts and labor.

Construction Details and Features:

o Fully Integrated Stereo Amplifier: Input 670 mV driving 10 watts.
o Multiple Inputs: CD and Aux (for Tuner, TV, VCR, Tape Recorder, Computer and etc).  1/8 inch input for MP3 Players or IPOD
o Remote Control: On/off, volume, selector, mute.
o Full Glass Top with Heat resistant Safety Glass
o Self Biasing Circuit
o Compact Size: 8 in. W X 7 in. D X 7 in.  H
o State of the Art Components: Gold plated RCA input jacks, gold plated five way speaker connectors.



Special Holiday Price !  Price includes freight !!!  These units sell out very fast just prior to the holidays dont wait until the last minute place your order now and ensure a unit for yourself ! ( Good only for Domestic USA locations only not good for Hi or Alaska ) do not select any shipping method when ordering . 10 watts of oure tube power, complete with remote,power cord, and cable for ipod. All Jolida units are shipped via Fedex ground with signature required upon receipt. Price includes freight....Not sure about this model? Have questions? Email us and we'll be glad to consult you or address your concerns, info@newtube.com. All units are pretested and burned in for 48 hours prior to shipping by the techs at Jolida .
An amazingly attractive yet efficient 10 watts of pure tube power light enough to move from the home office to back deck for a party, or ideal for a dorm,office,small apartment just about anywhere. You can plug your ipod directly into the front or add a CD or tuner to the input and you are ready to rockout or just mellow out to your favor rite sounds!. Place yours on order now these will go fast. Unit weighs approx 22 lbs







Jolida shipments to locations outside the lower 48 States:



 Although shipping is free to locations in the domestic US (lower 48 states) it is not free for overseas shipments or to Canada. This can be expensive and the search for a carrier with the best rate could take hours of painstaking quoting. As a result we use Fedex. However if you have a specific freight carrier that you are familiar with or have an account with that can pick up from the state of Maryland let us know and we will use them. In such cases the shipping must be prepaid or shipped using your verified account # with such carrier. We are not shipping experts for overseas shipments so if you can suggest a carrier let us know.

Please read our return policy on jolida items in  "Policies"
-->

Price: $575.00
