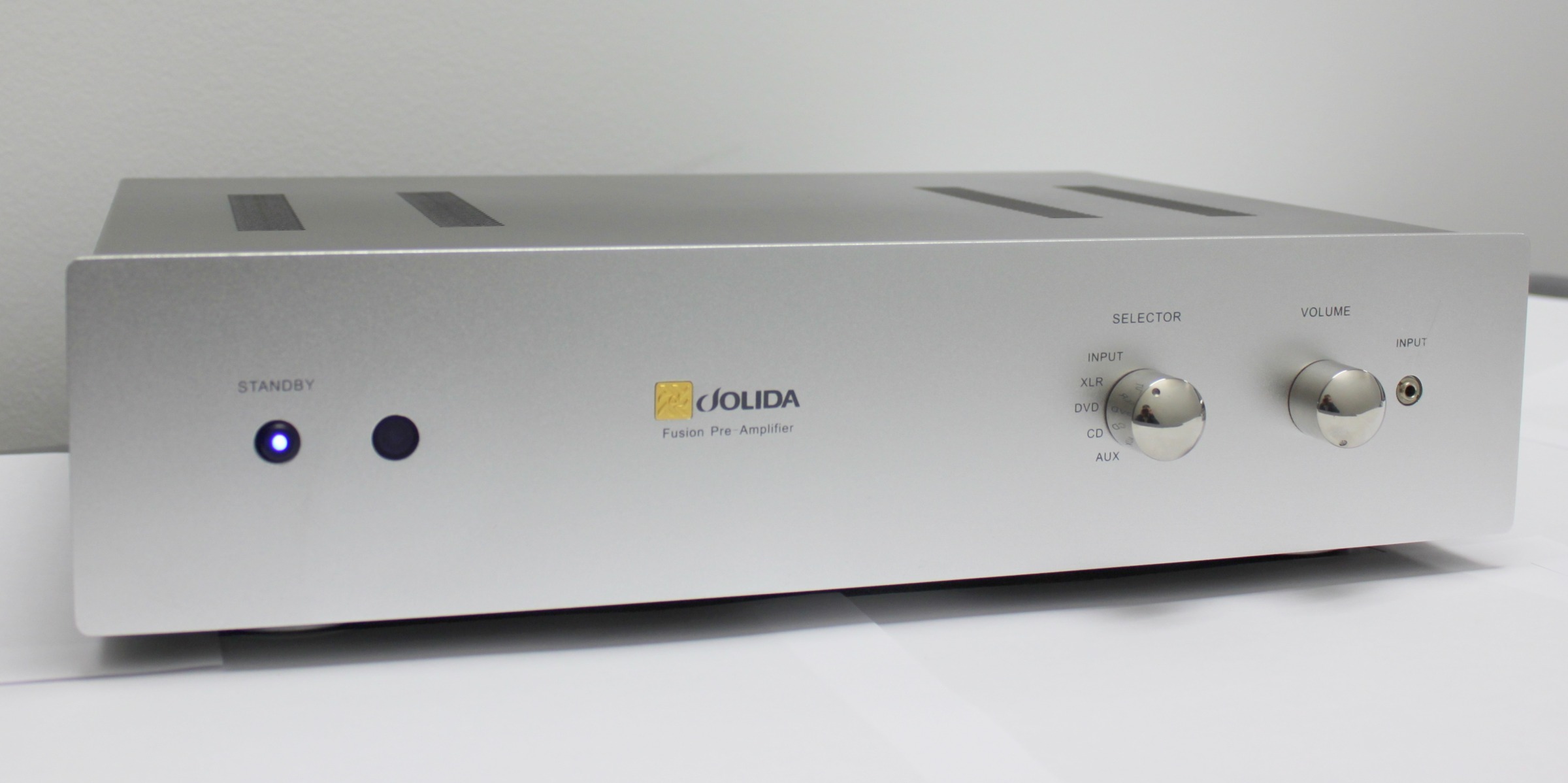

"Fusion" Pre Amp Black Finish (silver shown)

Posted by tntadmin
SKU: JD3000B

Call for price and availability before ordering


 A tube preamplifier for the discriminating listener. The unit provides a clean signal to the most demanding and transparent power amplifiers. At a later date, if your want to upgrade, it can be done. You can add bybee rails, Doulan capacitors, Clarity capactors, naked Z resistors and even Ultra pure copper cast wire. Call us and we can discuss how we can configure the best fit for your system.

Sales Policy : All sales are final no returns accepted.If any Jolida shipment is refused and or returned for any reason including a possible defect and no defect is found a 25% restocking fee will be imposed additionally  customer will be responsible for all shipping charges to and from the shipping point.By placing an order you are accepting these terms.





Max Output voltage:                      20 dB

Voltage Gain:                                   30 V

Frequency Response:                  5Hz to 110KHz, 10 V

Distortion THD:                              Less than .02%; 1 KHz, 10 V

SNR:                                                  Less than 100 dB

Input Impedance:                           100Kohms

Output Impedance:                        600 ohms

Weight:                                              28 pounds

Size:                                                   17 inches W X  13 inches D X 4.5 inches H

Tube Complement:                        2 pcs. 12AX7; 2 pcs. 12AT7 Premium Tungsol

Warranty:                                          18 months with 6 months on the  Vacuum tubes

Construction Details and Features:

o Full Tube Pre-amplifier

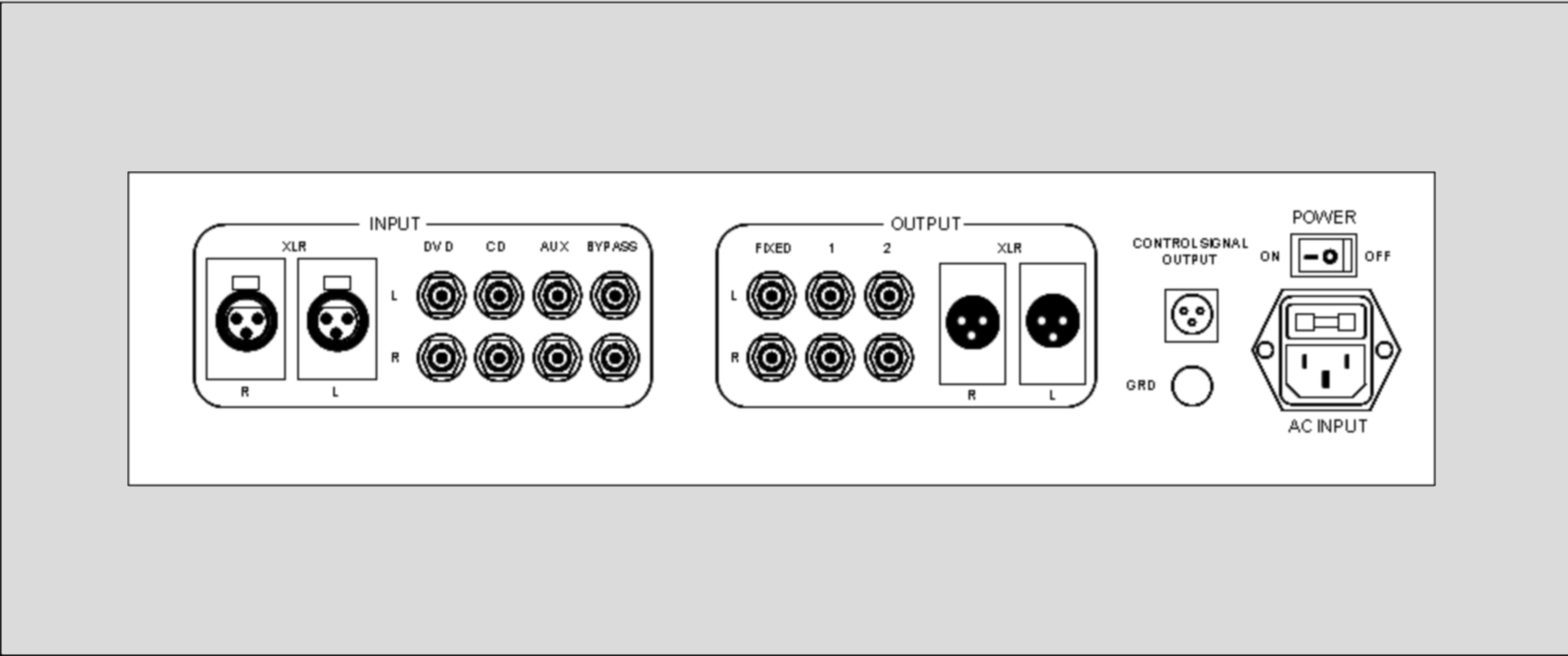

o Multiple outputs: Fixed out, XLR out, RCA out.

o  Multiple Inputs: Front mounted selector switch and mini jack, with a pair of XLR and RCA inputs. Also includes a bypass input.

o Custom Wound Audio Transformers with a core of German grain oriented silicon steel. 15th generation proprietary design

o State of the Art Components: ALPS audio potentiometer, gold plated RCA input and output jacks. Includes custom made polypropylene capacitors, ESA Clarity Caps and Hexfred diodes.

o  All Metal Remote control

o  Available in Black or Silver



Price: $0.00
