Fusion Pre Amp,

Posted by tntadmin
$0.00
SKU: Fusion Pre Amp

Call for price and availability before ordering





A Compact full Integrated Tube Amplifier



Smooth, rich and holographic sound from a 7 inch cube with a removable safety glass cover. A small but feature laden integrated vacuum tube amplifier, the unit has automatic biasing, can easily push 89 dB speakers, remote control, inputs of two RCA sets and one mini-jack with and 4 and 8 ohm speaker posts. Yes, it does come with the blue tube lights. Comes in black and silver colors. I

 Sales Policy : All sales are final no returns accepted.If any Jolida shipment is refused and or returned for any reason including a possible defect and no defect is found a 25% restocking fee will be imposed additionally  customer will be responsible for all shipping charges to and from the shipping point.By placing an order you are accepting these terms.

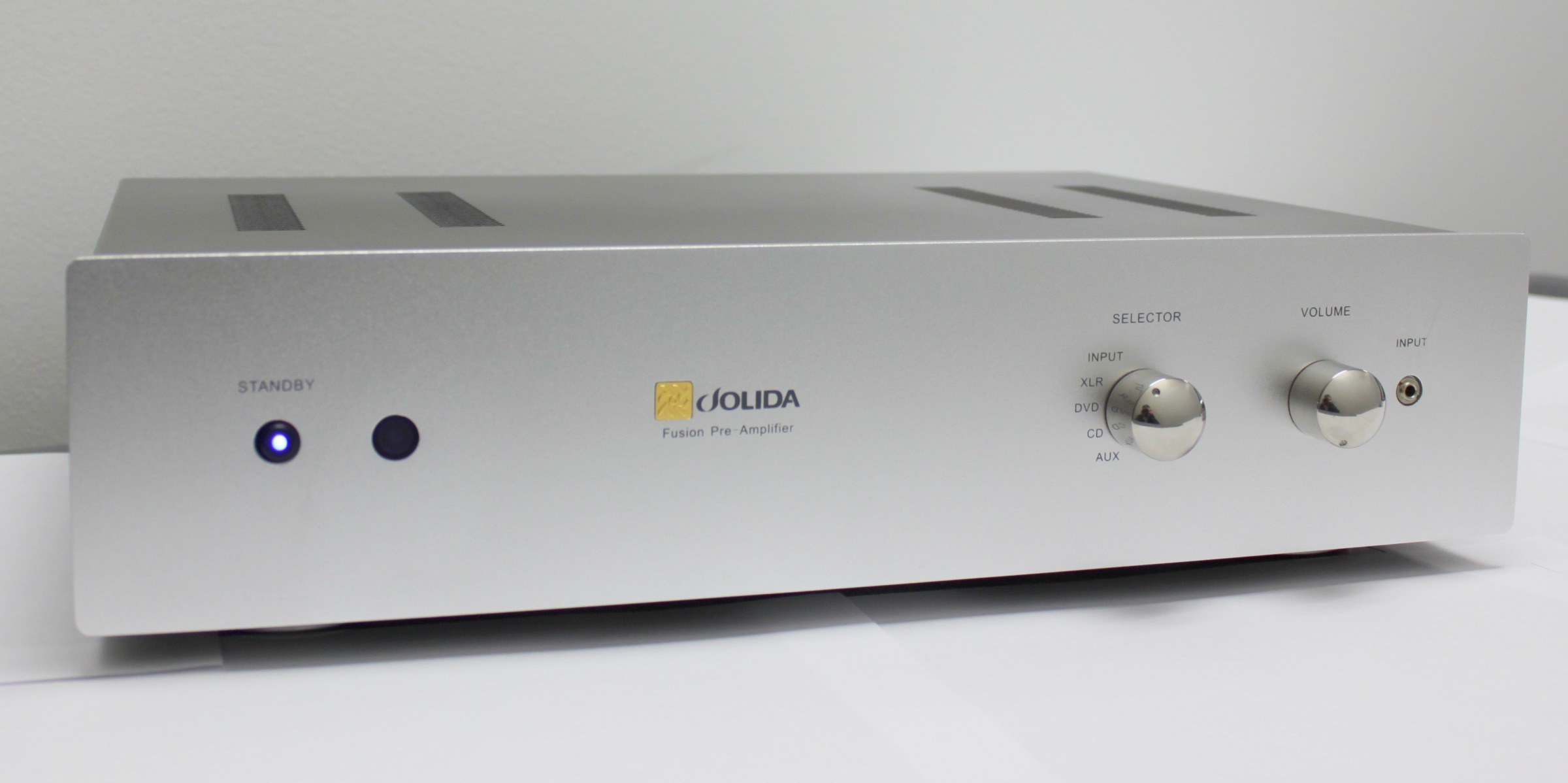

 Fusion Preamp.

Construction Details and Features:

  • Full Tube Pre-amplifier:

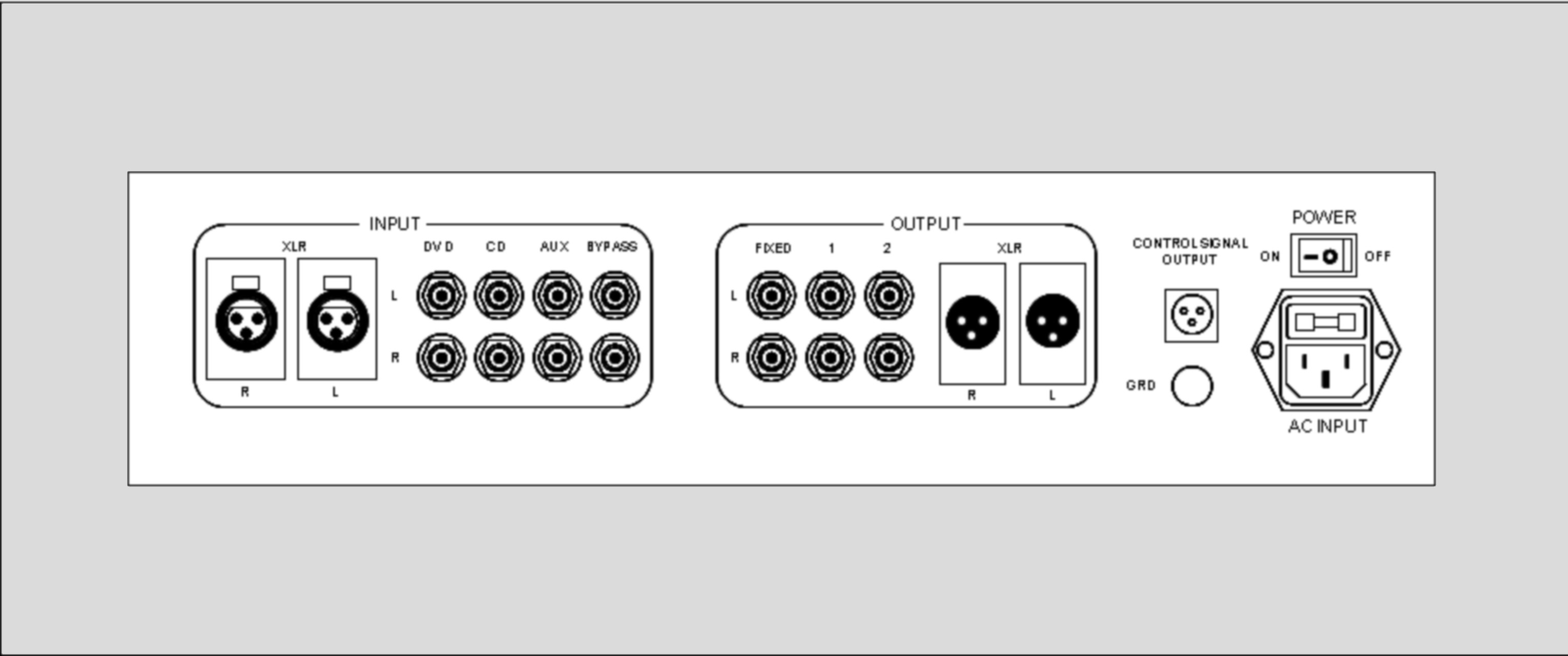

  • Multiple outputs: Fixed out, XLR out, RCA out.
  • Multiple Inputs: Front mounted selector switch and mini jack, with a pair of XLR and RCA inputs. Also includes a bypass input.
  • Custom Wound Audio Transformers with a core of German grain oriented silicon steel. 15th generation proprietary design.
  • State of the Art Components: ALPS audio potentiometer, gold plated RCA input and output jacks. Includes custom made polypropylene capacitors, ESA Clarity Caps and Hexfred diodes.
  • All Metal Remote control
Technical Specifications:
Max Output voltage: 20 dB
Voltage Gain: 30 V
Frequency Response: 5Hz to 110KHz, 10 V
Distortion THD: Less than .02%; 1 KHz, 10 V
SNR: Less than 100 dB
Input Impedance: 100Kohms
Output Impedance: 600 ohms
Weight: 28 pounds
Size: 17 inches W X 13 inches D X 4.5 inches H
Tube Complement: 2 pcs. 12AX7; 2 pcs. 12AT7 Premium Tungsol Tubes





Price: $0.00
