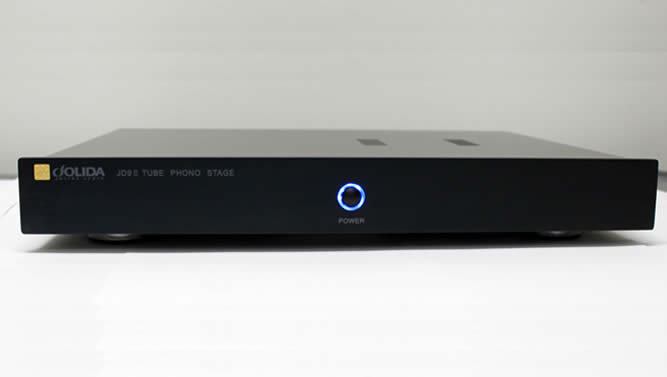

JD9 Series 2 Phono Pre Amp standard model

Posted by tntadmin
$549.00
SKU: Tape out option



Price includes freight (Domestic USA locations only not good for Hi or Alaska ) do not select any shipping method when ordering . All Jolida units are shipped via Fedex ground with signature required upon receipt.  .Not sure about this model? Have questions? Email us and we'll be glad to consult you or address your concerns, info@newtube.com

Sales Policy : All sales are final no returns accepted.If any Jolida shipment is refused and or returned for any reason including a possible defect and no defect is found a 25% restocking fee will be imposed additionally  customer will be responsible for all shipping charges to and from the shipping point.By placing an order you are accepting these terms.











Note: Available in Black and Silver, Please indicate color choice in "notes" if you place an order

Frequency Response:          5Hz to 110KHz, (+/- 1 dB)

SNR:                                       > 100 dB

Distortion THD:                    Less than .01%

Input Impedance:                  100Kohms

Output Impedance:               600 ohms

Phono Stage:

            MM:                            60 dB, 5 mV

            MC High:                    75 dB, 0.5 mV – 1.5 mV

            MC Low:                    85 dB, 0.25 mV – 0.5 mV

Input Resistance:                  100 ohm, 300 Ohm, 1Kohm, 47Kohm

Input Capacitance                 47 PF, 100PF, 150PF, 220PF

Tube Complement:               2 pcs. 12AX7

Size:                                       17 in. (W) x 13 in. (D) x 2 in. (H)

Weight:                                   10 lbs., 14 lbs. Boxed

Warranty:                               One year parts and labor, 3 months on tubes



Construction Details and Features:

o  Phono pre-amplifier that will handle MM, MC and Dynamic head cartridges.

o  Lowest Rated sensitivity at .25 mV – 85 dB.

o  Low noise -57 dB

o  Two Outputs RIAA, Line stage.

o  Adjustable settings for cartridge type

o State of the Art Components: Gold plated RCA input

   jacks.

o  R Transformer and Heavy duty Voltage Regulator

o  Low profile full body allows the unit to act as a base for your amplifier or turntable.

    No need to lose another shelf for a component.

o  Tube Output



Price: $549.00
